The Bi-LINE systems has been installed on various refuse/garbage vehicles to provide secured access for operatives carrying out maintenance access on the vehicles roof mounted hydraulic and electrical equipment. The Bi-LINE installation generally comprises of a traveling Dual Lanyard attached to two restraint Lines, one located along each outside edge of the roof. The single Dual Lanyard is attached to the restraint lines via sliding Shuttles that allow the operative access to the full length and width of the vehicle. The three lift multi-pak vehicles have an alternate configuration that includes a second fixed lanyard for greater accessibility.

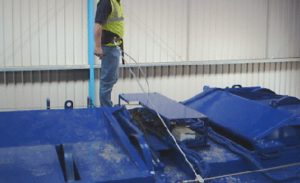

The operative wears a comfortable padded Bi-LINE Work Positioning Belt with a simple snap fix buckle and friction adjusted webbing strap. The ‘stowed’ lanyard location is identified by and access sticker on the side of the vehicle. The operative would locate the access ladder / platform adjacent to this sticker. At waist height to the vehicle roof, the operative can reach the lanyard and release it from the stowage anchor. The Lanyard is then used as a third point of contact and restraint so the operative can pull themselves onto the roof.

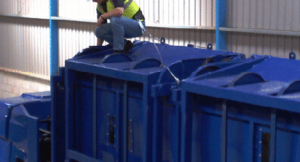

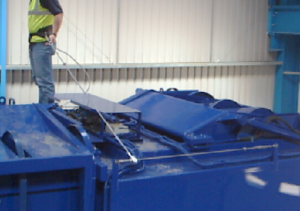

In the middle of the Lanyard is a Safety Swivel Hook trapped between two Stoppers, the hook is immediately connected to a sliding D Shackle on the operative’s belt. Once connected, the operative has hands free access to the whole roof area (where a single lanyard is fitted), the lanyard simply slides along the restraint line as the operative progresses along the roof area. Due to the complex configuration of these vehicles, some are fitted with a second Lanyard to provide greater access. The operative is able to access each Lanyard while connected to the first, transfer between lanyards is therefore achievable while retaining a third point of contact. The length of the lanyard from its attachment to the restraint line to the hook is less than the width of the vehicle preventing falls from the sides. Stoppers fitted to the restraint lines limit the access at the end of the vehicle.
