Street Sweepers

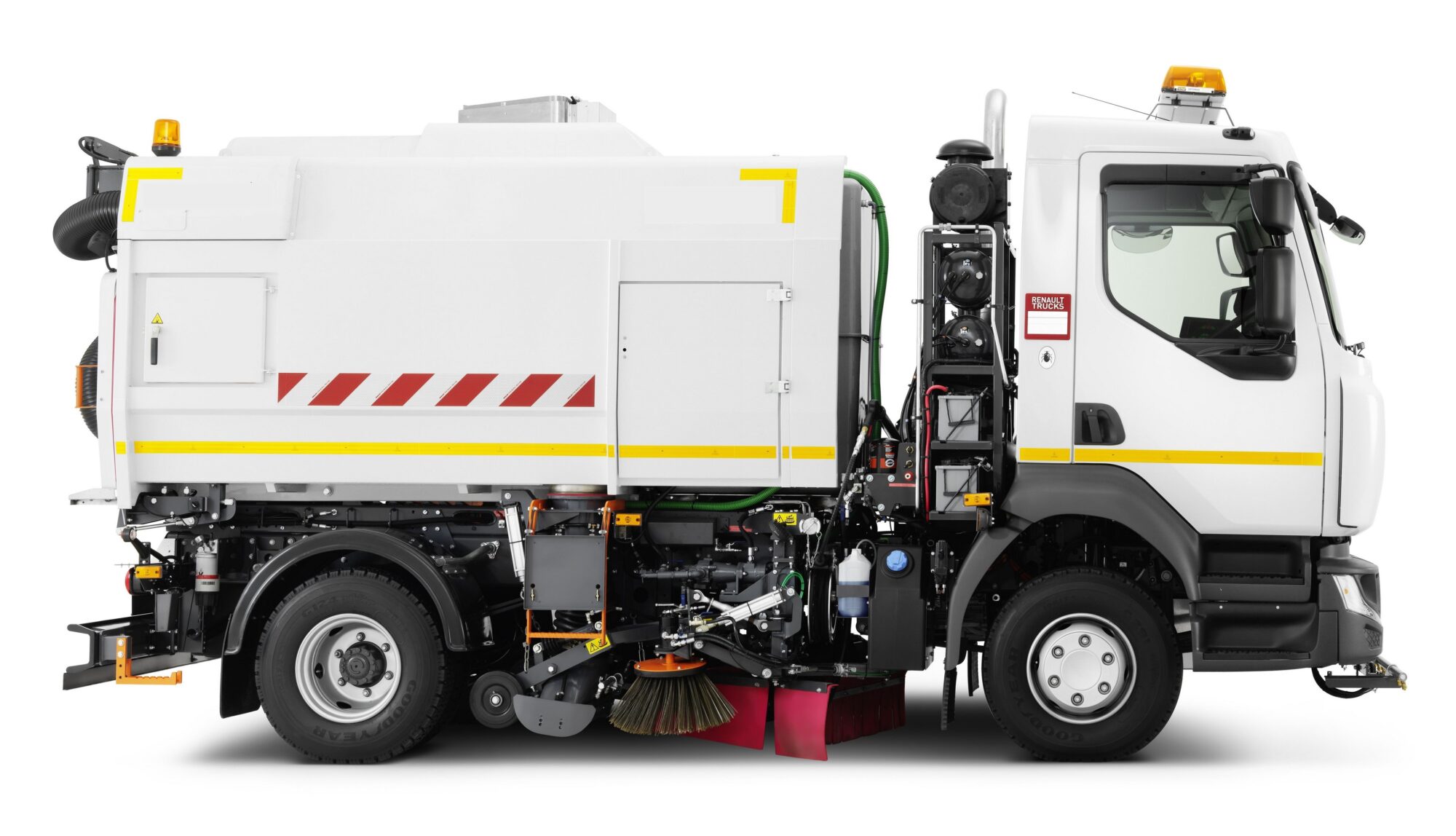

The Bi-LINE system has been installed on various Road and Street Sweeper and Gulley Cleaning vehicles to provide secured access for operatives requiring maintenance access on the vehicles roofs.  The Bi-LINE installation generally comprises of a traveling Dual Lanyard attached to two restraint Lines, one located long each outside edge of the roof.  The single Dual Lanyard is attached to the restraint lines via sliding Shuttles that allow the operative access to the full length and width of the vehicle.

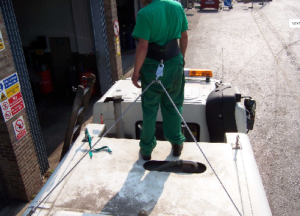

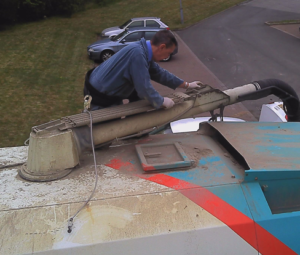

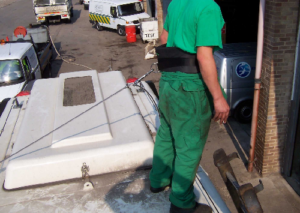

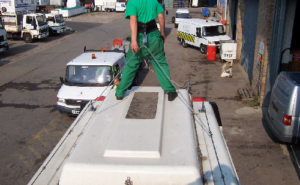

The operative wears a comfortable padded Bi-LINE Work Positioning Belt with a simple snap fix buckle and friction adjusted webbing strap.  The ‘stowed’ lanyard location is identified by and access sticker on the side of the vehicle.  The operative would locate the access ladder / platform adjacent to this sticker.  At waist height to the vehicle roof, the operative can reach the lanyard and release it from the stowage anchor.  The Lanyard is then used as a third point of contact and restraint so the operative can pull themselves onto the roof.  In the middle of the Lanyard is a Safety Swivel Hook trapped between two Stoppers, the hook is immediately connected to a sliding D Shackle on the operative’s belt.  The operative is now secured but has both free.
